Fluidized Conveying equipment

I. Overview

Air Slide Conveyor is a kind of pneumatic conveying equipment widely used for conveying dry powdered materials. It is often used to convey cement and raw material powder in the cement industry.

Compared with conveying equipment such as screw conveyors and belt conveyors, it has no rotating parts, is easy to maintain, has good sealing, no noise, is safe and reliable to operate, consumes less power, is convenient to change the conveying direction, and can feed and unload at multiple points.

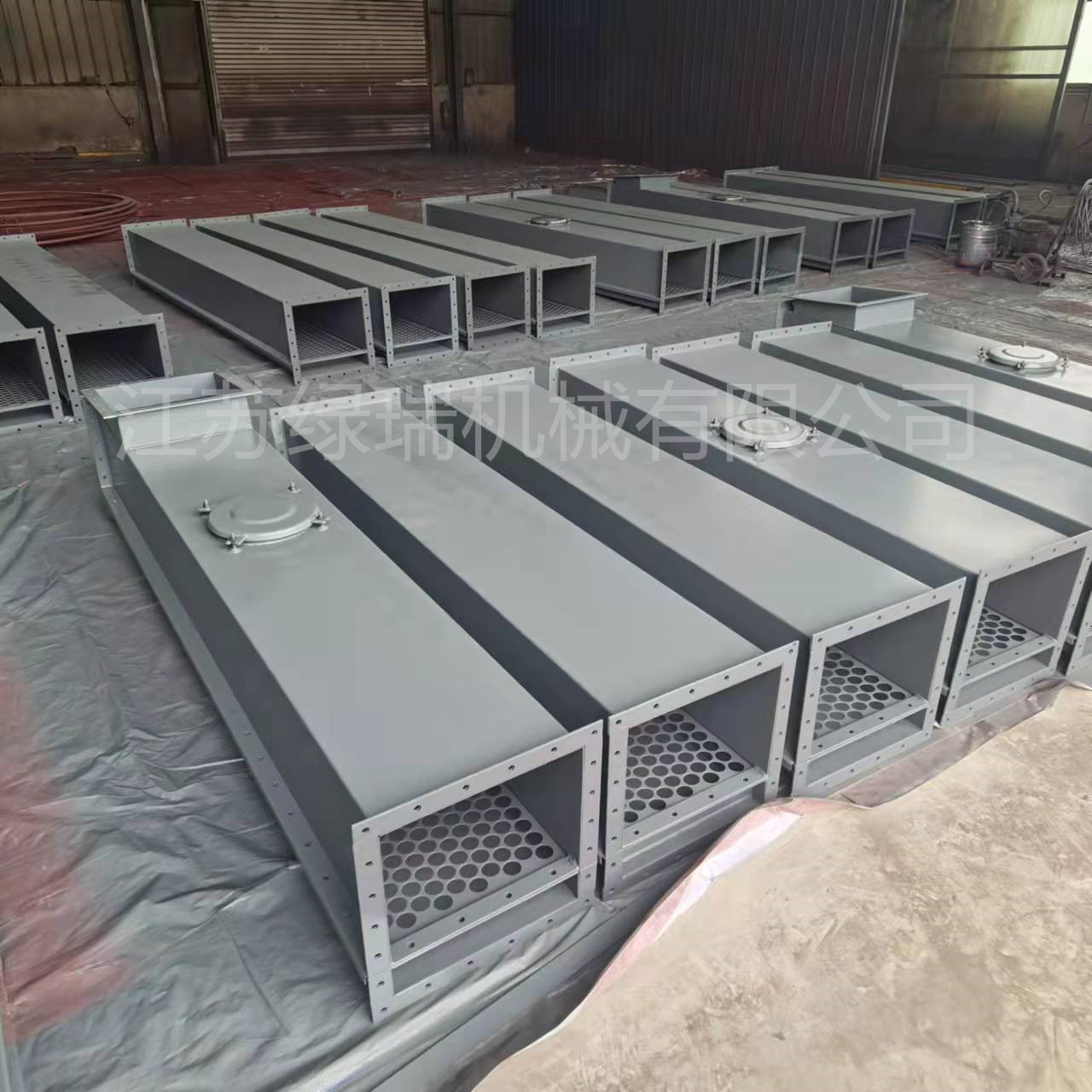

Air Slide Conveyor is made of several troughs made of ordinary thin steel plates and other accessories connected by bolts. There is a breathable layer between the upper and lower troughs, and the air conveying chute is installed at a certain angle from high to low from the feed end to the discharge end.

The material chamber is above the breathable layer and the air chamber is below. When the gas with a certain pressure is blown into the air chamber, the material is fluidized through the breathable layer, so the material flows in the trough like a fluid under the action of gravity. Usually, a ventilator is used as the wind source. The excess air in the material chamber is extracted by the dust collector through the exhaust port of the air conveying chute.

II. Structure and layout of Air Slide Conveyor

1- Head section  2- Middle slot  3- Bend groove  4- Tee slot  5- Shut-off valve  6- Side discharge section

7- Discharging chute 8- Slot rack9- Rain cover 10- Air control valve 11- Gas supply pipeline 12- Air supply device

13- Feed slide 14 windshield 15- Dust collection port 16- Air chamber partition 17- Wear Plate 18- End cover

III. Transport capacity reference table

Specification				XZ200	XZ250	XZ315	XZ400	XZ500	XZ630	XZ800
width			mm	200	250	315	400	500	630	800
Conveying capacity	i=4°	cement	t/h	22	40	70	130	220	320	400
		Raw material		16	30	55	100	165	245	310
	i=6°	cement		40	65	120	250	400	610	765
		Raw material		30	55	90	185	300	455	565
	i=8°	cement		50	80	140	300	470	720	900
		Raw material		36	65	110	225	355	540	670
	i=10°	cement		60	100	170	380	570	900	1080
		Raw material		45	80	140	285	425	670	800
	i=12°	cement		70	120	205	455	685	1080	1295
		Raw material		50	95	165	340	510	805	960
